Fanimation Fans - FP8511 - SculptAire - 3 Blade Ceiling Fan-13.88 Inches Tall and 52 Inches Wide

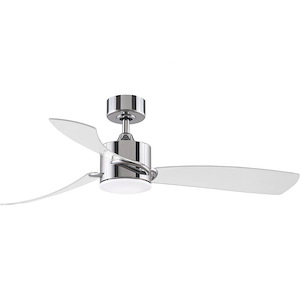

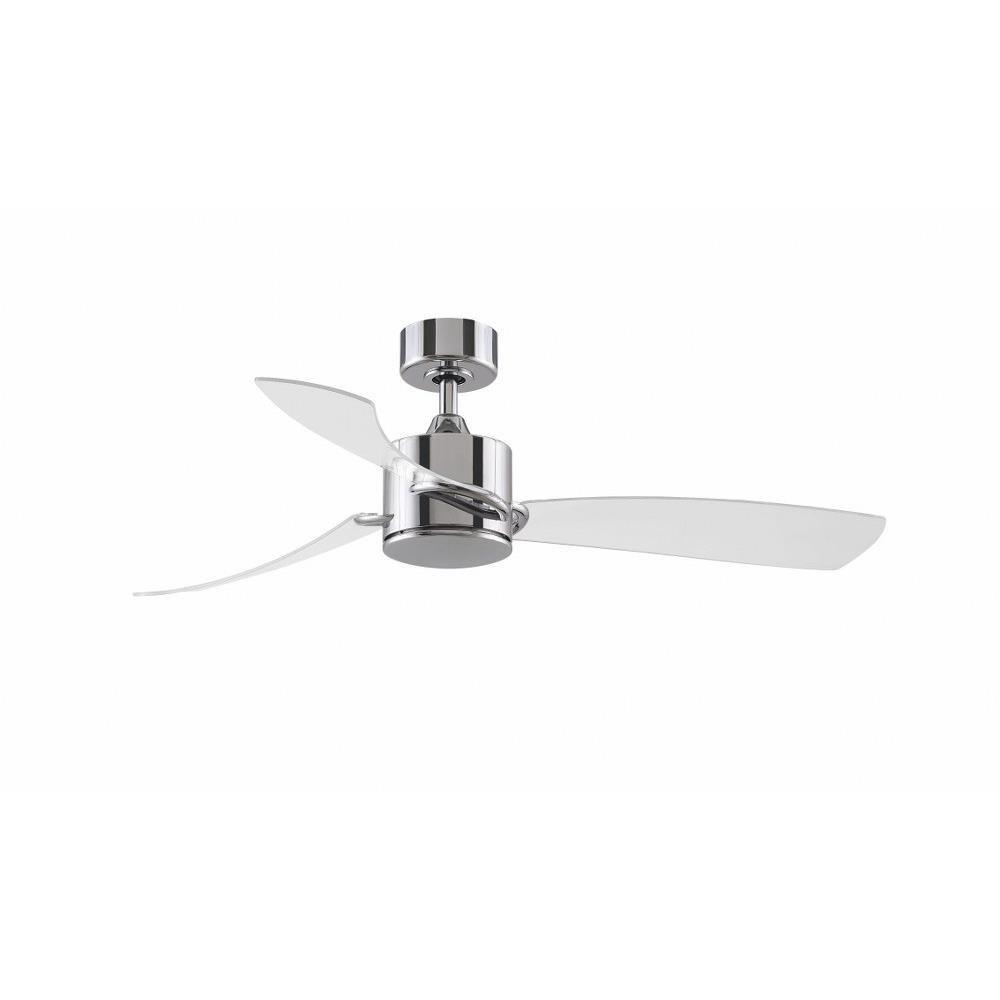

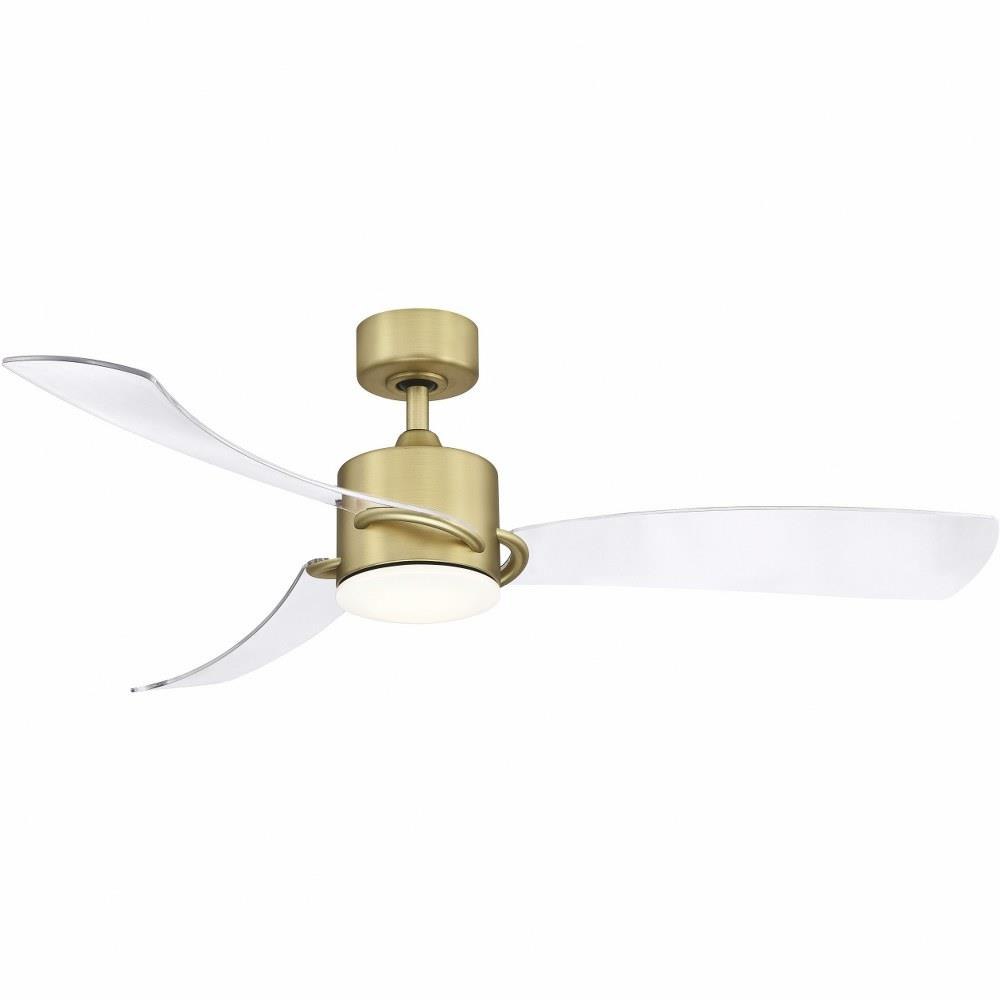

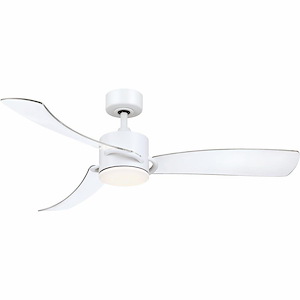

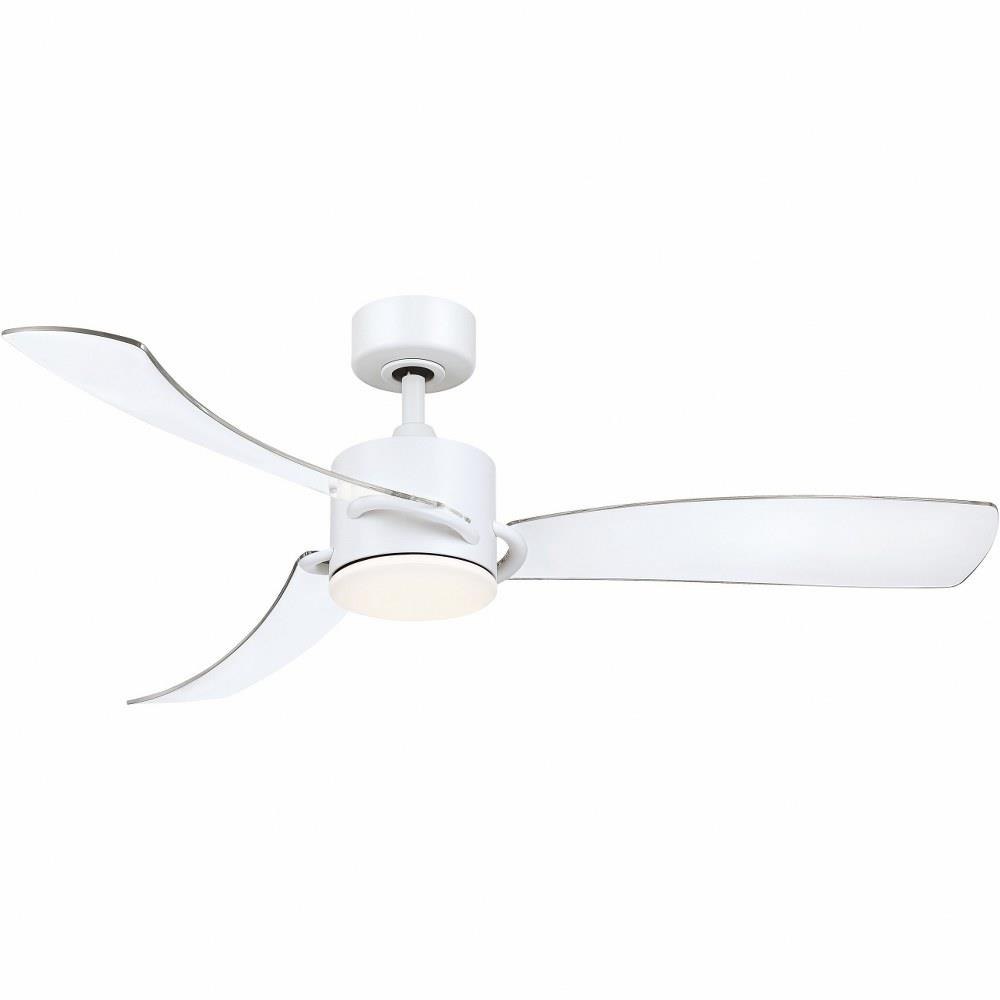

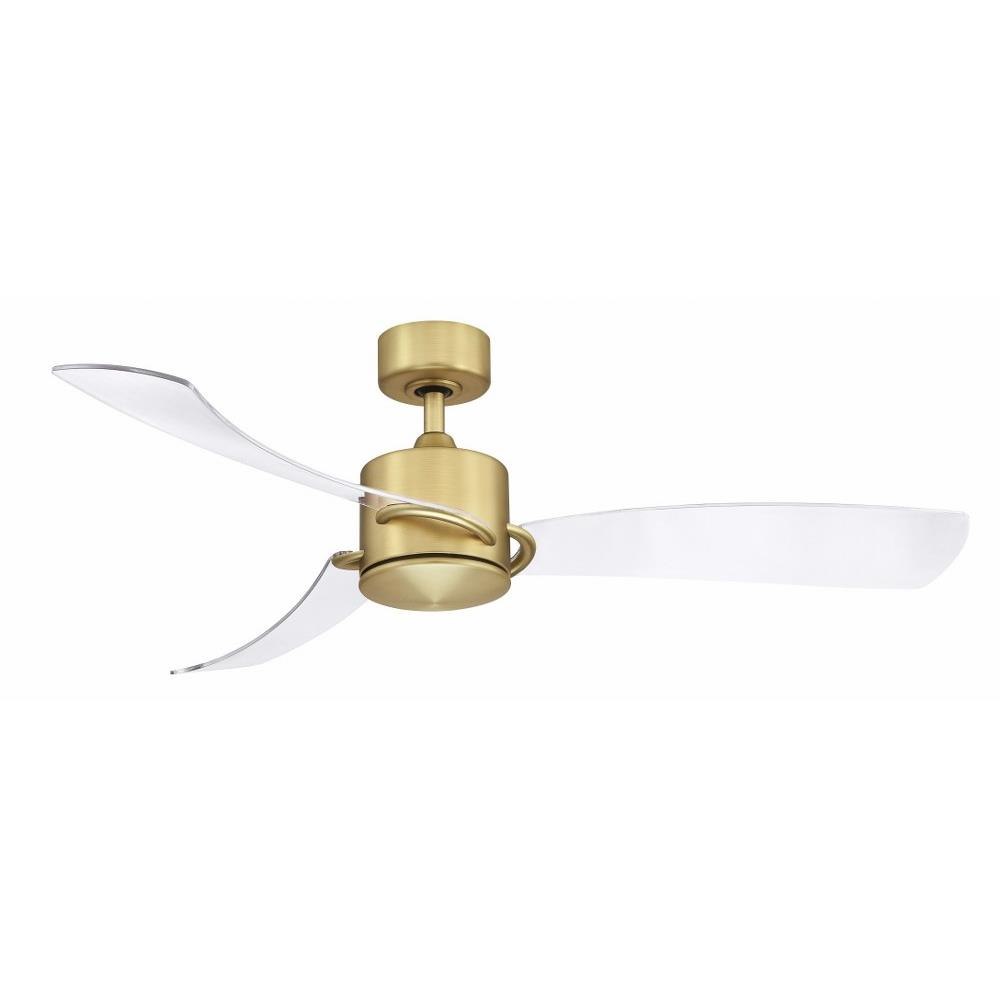

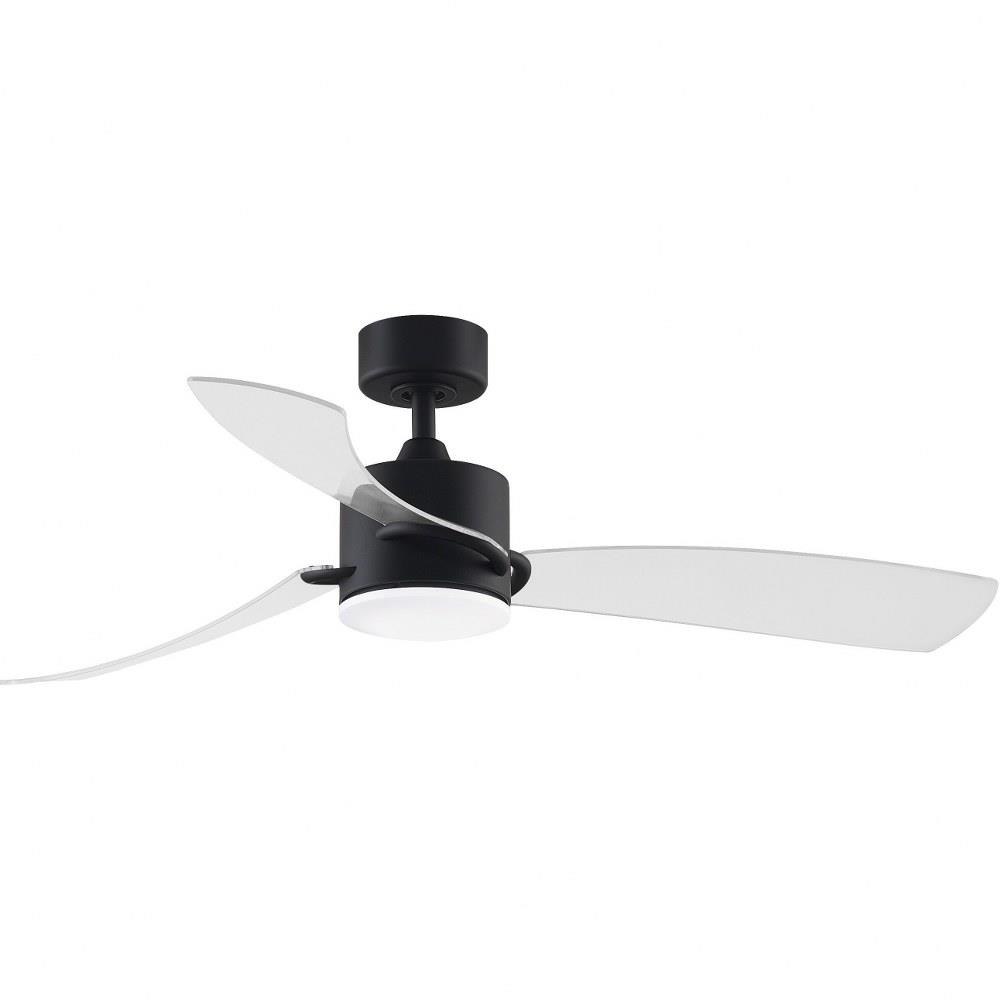

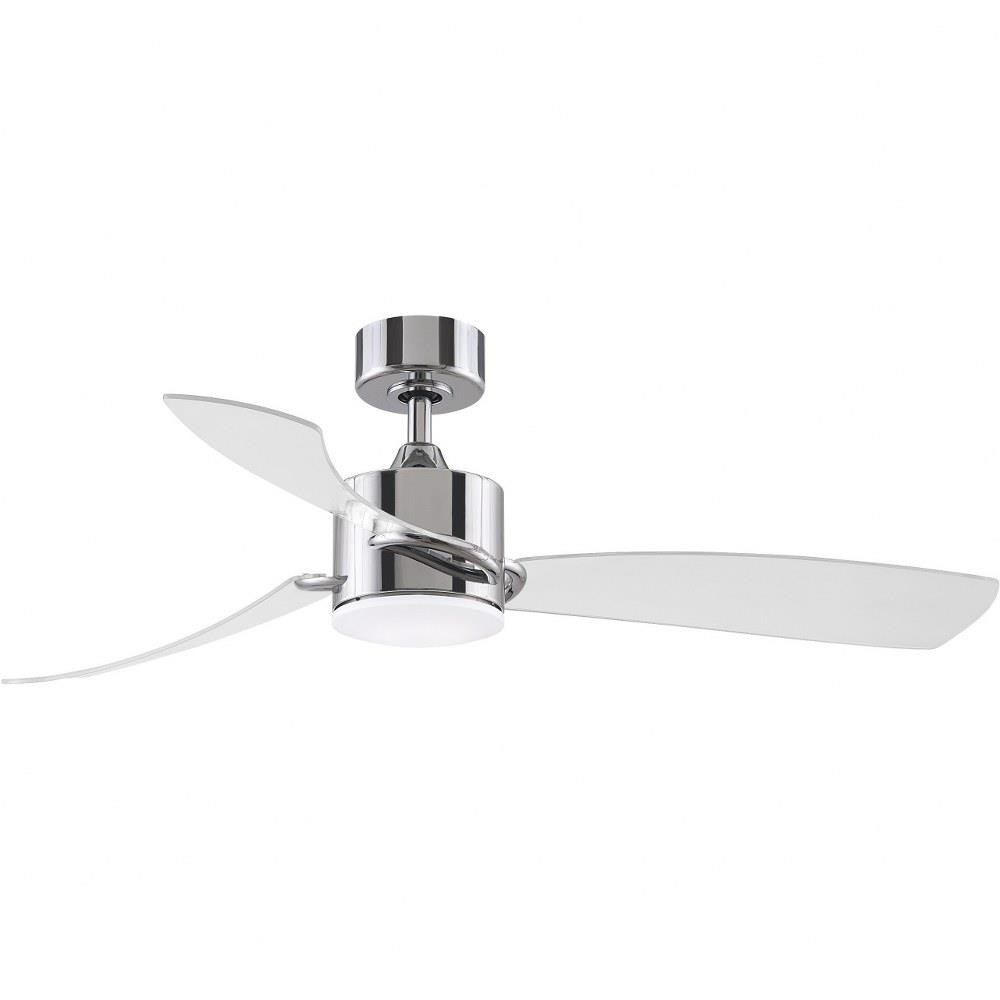

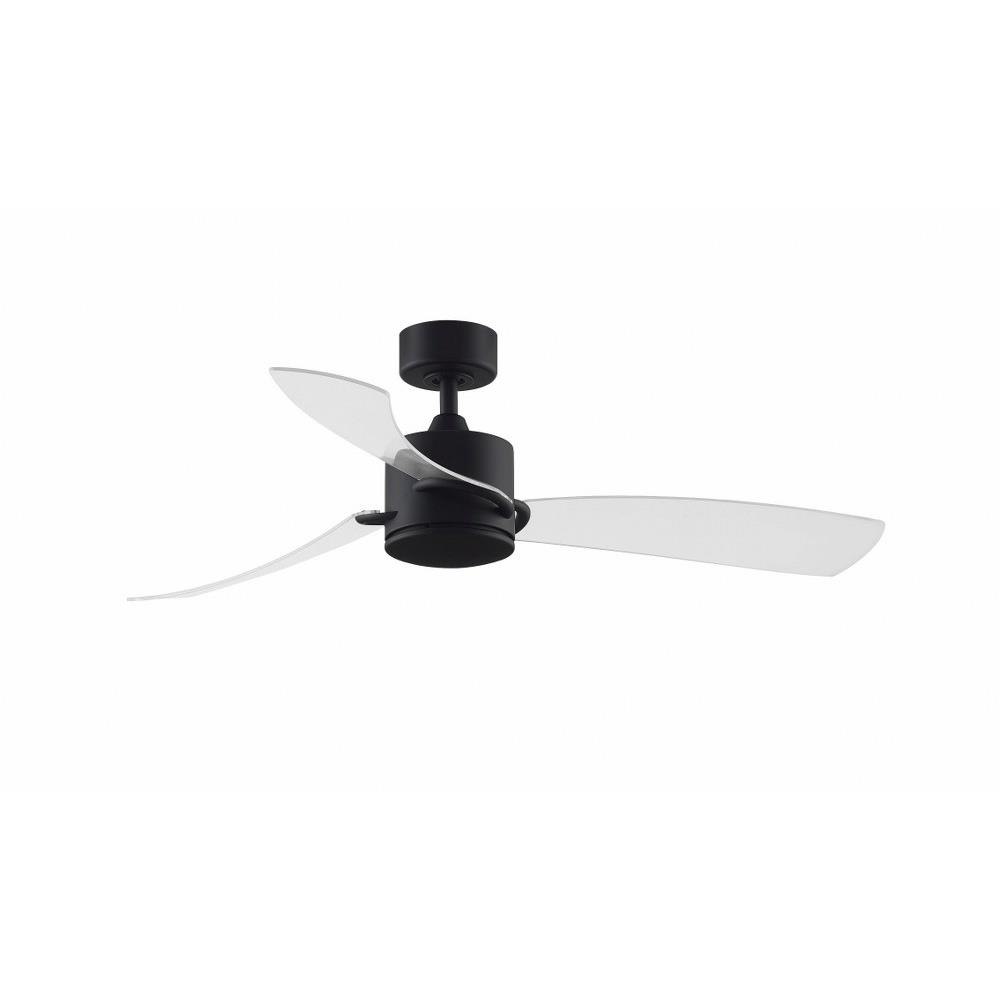

Whether you choose a Black, Chrome, Brushed Satin Brass, or Matte White finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black and Matte White finishes are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

• 3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
• Set of (3) 52 inch clear blades and 18 watt LED light kit with cover and bulb included
• WiFi or Bluetooth compatible (required controls sold separately)
• 4663 CFM on High
• TR500 handheld remote with 23A battery included
• Limited Lifetime Warranty

Sculptaire Indoor/Outdoor Ceiling Fan Dimensions

• Diameter: 52"; Height: 13.88" (From Ceiling to Bottom of the light glass using the included down rod 4.5"). Requires a minimum ceiling height of 8' for proper safety clearance.
• Blade Drop 11.83".
• Canopy Diameter 5.75". This ceiling fan can be mounted on a slope ceiling up to 27°. Up to 42° with slope adapter SCB1-52
• Close to ceiling kit compatible CCK8002BS

Motor Information

• Energy-efficient 153x20 mm AC motor with 3 speeds and reverse, designed for quiet operation. The motor is covered under a limited lifetime warranty and is available in 4 designer colors.
• The Sculptaire ceiling fan uses a AC current motor that creates more power and torque.

Fan Blades

• Comes with 3 beautifully curved clear blades. The blades are precision balanced for wobble free operation.
• The blades feature a 13° pitch, creating a optimal airflow of 6701 CFM when used on the highest speed.

Control

• SculptAire comes with the TR500 Fan remote system.
• 3 speed forward and reverse. Reverse button located on the fan housing.
• Other control options: Wall control 2 wire without light WC1WH, 3 wire with light WC2WH, 2 wire without light WR500WH, 3 wire with light WR501WH.
• Optional Bluetooth control BTCR9

Light Kit

• The Sculptaire comes standard with a light kit and cap for non light use.
• Wattage: 18 watts
• Lumens: 1500
• Color Temp: 3000K
• CRI 90

Room Suggestion

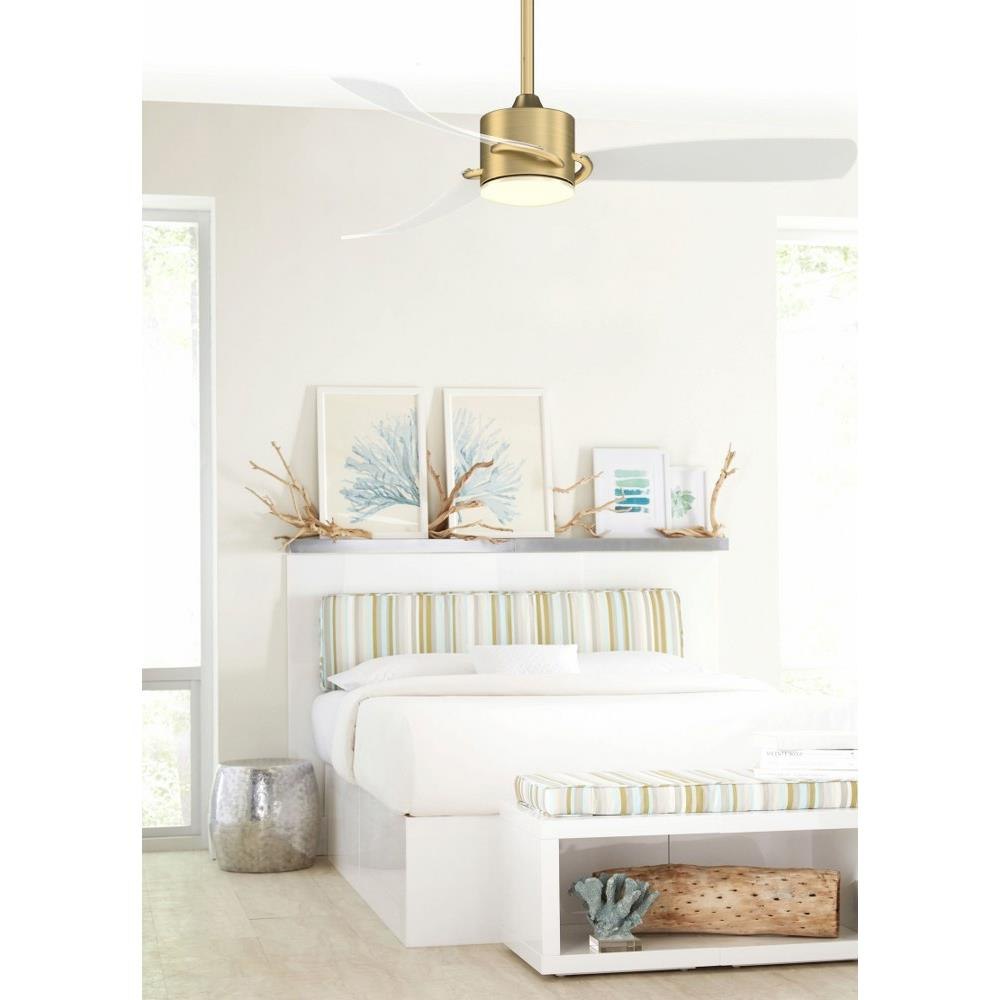

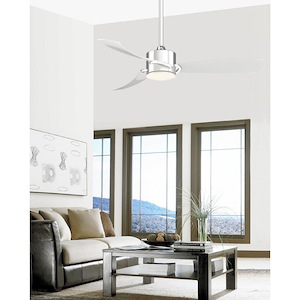

• The Sculptaire is great for large indoor or outdoor spaces that are up to 400 square feet. Such as a family room, great room, master suite, bedroom, loft area, porch, patio or deck.

Features

• UL listed for damp locations
• Available in 4 different finishes
• Larger ceiling fan for use in larger rooms and outdoor spaces for maximum air movement
• 3 gently curved blades attach to the motor with a unique handle design.
• 4.5" down rod included
• Corrosion resistent down rods available for outdoor mounting where elements are a concern. DR1SSBS

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.

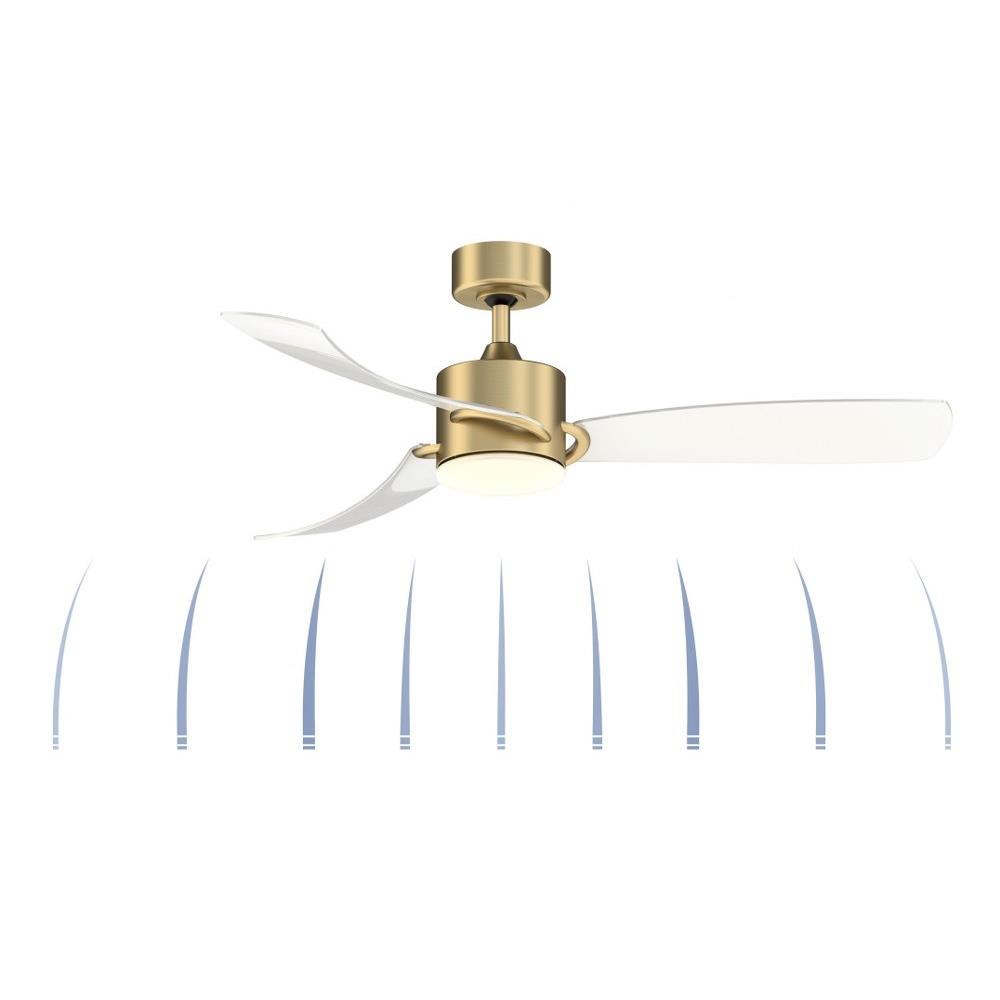

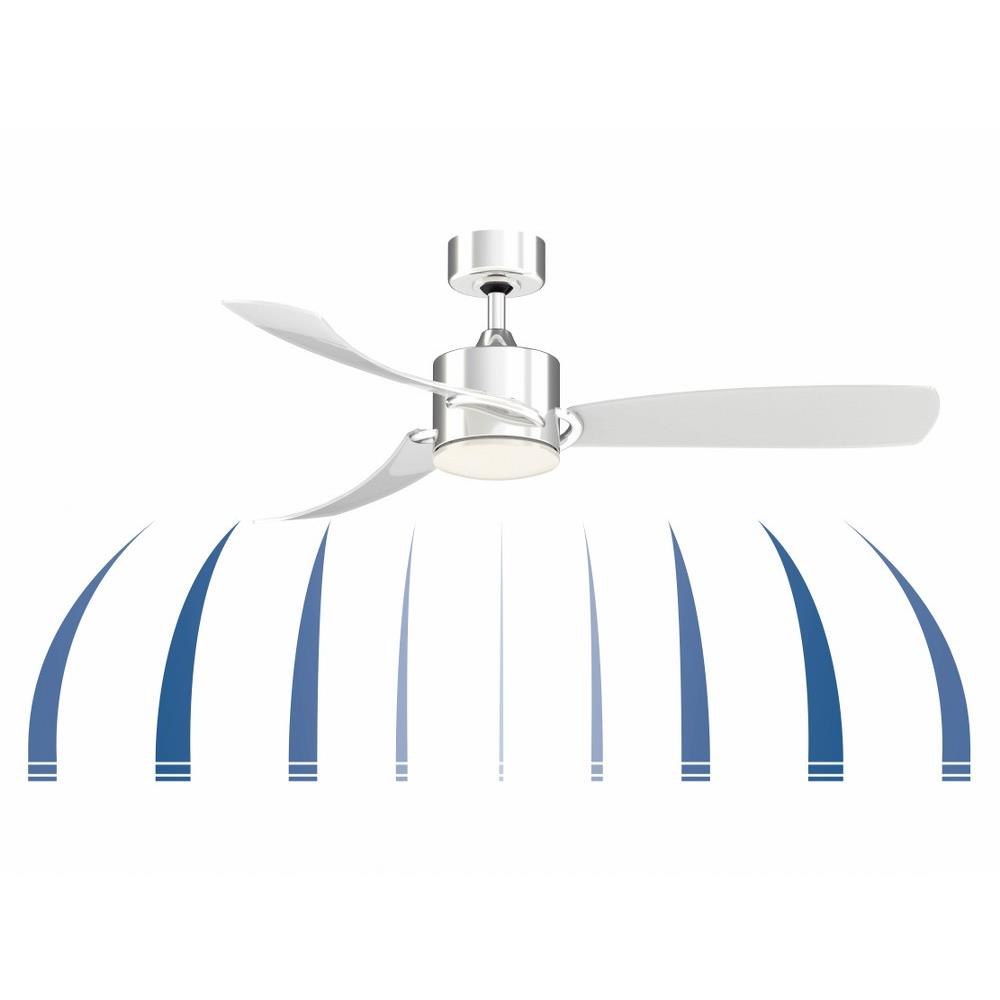

• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
